Removing the Tail Lamp

Tail Lamp

1 - Open Trunk and remove the 3 (3 per side, 6 total) plastic caps

2 - Under the plastic caps, remove the screws (Note that these screws are about 4 inch long and they have to be pulled out of their socket after they have been unscrewed)



3 - Pull lamp outward and disconnect 4 light bulb sockets (4 light bulb sockets for each lamp assembly)

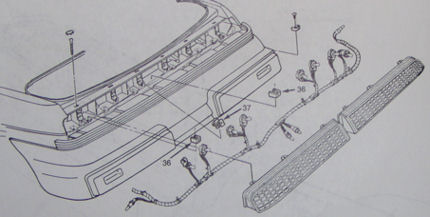

Schematic:
